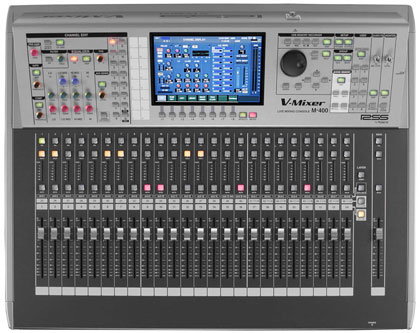

PROCESSING: - Number of Channels: 48 inputs / 18 buses - Signal Processing: 56-bit - AD/DA Conversion: 24-bit / 44.1kHz or 24-bit / 48kHz - Network Latency 2.8 ms (typical) - Total System Latency of audio signal from S-1608 inputs to outputs via M-400s REAC ports (A or B). - Sample Rate: 48.0 kHz CONNECTORS: - XLR Inputs (1 to 8 ): XLR-3-31 type (balanced with phantom power) Talkback Mic Input XLR-3-31 type (balanced with phantom power) - RCA Inputs (L/R): RCA Pin Type - XLR Outputs (1 to 8 ): XLR-3-32 type (balanced) - Phone Output: Stereo 1/4 inch phone type - Digital Outputs: Optical type x 1 and Coaxial type x 1 - REAC Ports: RJ-45 EtherCon type x 3 - USB Ports: A type x 1 and B type x 1 - Remote Connectors: RS-232C (D-Sub 9 pin type) x 1*MIDI (5 pin DIN type) x 2 (Out/Thru & In) * Serial remote control is not available on version 1 firmware Other Connectors LAMP (XLR-4-31 type) x 1, Grounding terminal, AC INPUT / OUTPUT CHARCTERISTICS: - Frequency Response XLR output jacks (1 to 8) : -2 dB / +0 dB (20k ohms load, +4 dBu) - Phones jack: -3 dB / +0 dB (40 ohms load, 150 mW) - Total Harmonic Distortion + Noise XLR output jacks (1 to 8): 0.05 % (typical), Phones jack: 0.05 % (typical) - Dynamic Range XLR output jacks (1 to 8): 110 dB (typical) - Cross Talk@1kHz XLR input jacks (1 to 8): -80dB (Pad: ON, Input gain: +10 dBu, typical) - XLR output jacks (1 to 8): -100 dB (typical) - Nominal Input Level (Variable) XLR input jacks (1 to 8): -65 to -10 dBu (Pad: OFF) or -45 to +10 dBu (Pad: ON) - RCA input jacks (L/R): -18 to 0 dBu - Talkback input jack: -50 to -10 dBu - Input Impedance XLR input jacks (1 to 8): 14 k ohms, RCA input jacks (L/R): 10 k ohms, - Talkback input jack: 41 K ohms - Non Clip Maximum Input level XLR input jacks (1 to 8): +8 dBu (Pad: OFF) or +28 dBu (Pad: ON), - RCA input jacks (L/R): +18 dBu, Talkback input jack: +8 dBu - Nominal Output Level XLR output jacks (1 to 8): +4 dBu (Load impedance: 10 k ohms) - Output Impedance XLR output jacks (1 to 8): 600 ohms, Phones jack: 100 ohms - Recommended Load Impedance XLR output jacks (1 to 8): 10 k ohms or greater, Phones jack: 8 ohms or greater - Non Clip Maximum Output level XLR output jacks (1 to 8): +22 dBu (1 kHz, 10 k ohms load) - Phones jack: 150 mW + 150 mW (1 kHz, 40 ohms load) - Residual Noise Level (IHF-A, typical) -88 dBu (All faders : Min) - Equivalent Input Noise Level (E.I.N.) -126 dBu OTHERS: - Display 800 x 480 dots Wide VGA backlit TFT full color - Power Supply AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz) - Power Consumption 95 W - Dimensions 749.0 (W) x 626.0 (D) x 229.0 (H) mm, 29-1/2 (W) x 24-11/16 (D) x 9-1/16 (H) inches - Weight 19.8 kg, 43 lbs 11 oz
