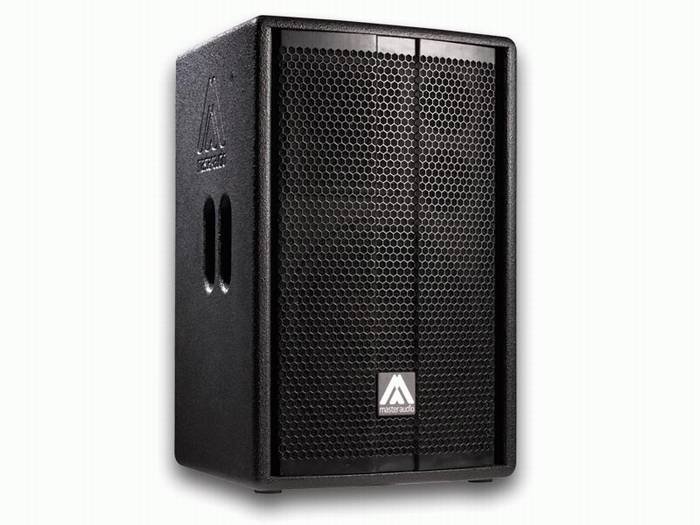

12" Nd Woofer + 1" Nd Driver - Bi-Amp 500+60W - 125 dB - 48Hz-19kHz - StageMon - 20,3 Kgs
The P12A is a trapezoidal-wedge full range two-way system, with a 500 W Class D amplifier for the low way and a 60 W Class AB amplifier for the high way, 24 dB/Oct active crossover, sound processing circuit and Clip limiters on each amplifier. It comprises a 12´´ Neodymium Woofer and a 1´´ Driver with a 1´´ 3/4 Titanium diaphragm

MAIN TECHNICAL FEATURES

Line Input: XLR-3 BAL 1,5 V - 10k Ohms
Mains:230 V +/- 10%
Consumption at Maximum Power:2 A
Components:
LF-MF 1 x 12" neodymium woofer
HF 1" 3/4 titanium diaphragm
Directivity: H / V 50º to 100º x 55º Rotatable Horn
Frequency response:48 Hz - 19kHz (-10 dB HSA)
Sensitivity: Max SPL:125 dB
Dimensions (H/W/D) 627x412x401mm
Weight 20.3 Kg
Finish:Birch plywood. Front grille with foam. Black paint
Optional accessories:Wall Stand. BackCover. Rigging. Stand
