Woofer 15" Nd + 1" Nd - Bi-Amp 500+60W - 127 dB - 45Hz-19kHz - StageMon - 26,6 Kgs

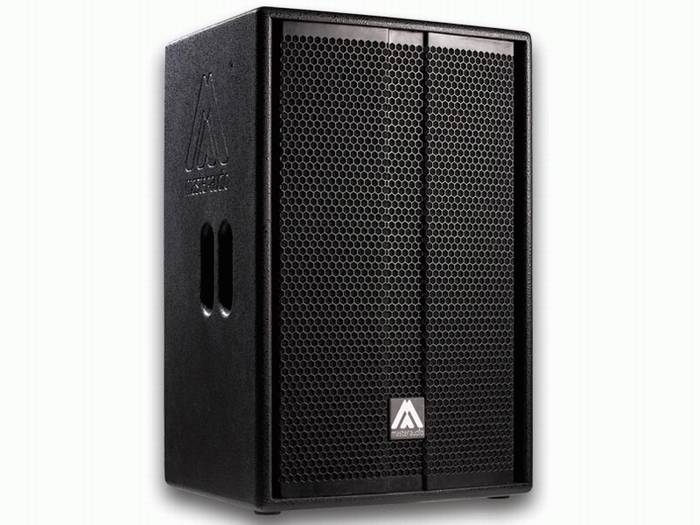

The P15A is a trapezoidal-wedge full range two-way system, with a 500 W Class D amplifier for the low way and a 60 W Class AB amplifier for the high way, 24 dB/Oct active crossover, sound processing circuit and Clip limiters on each amplifier. It comprises a 15´´ Neodymium Woofer and a 1´´ Driver with a 1´´ 3/4 Titanium diaphragm.

MAIN TECHNICAL FEATURES

Input Line: XLR-3 BAL 1,5 V - 10k Ohms
AC Mains:230 V +/- 10%
Consumption at Maximum Power:2 A
Components:
LF-MF 1 x 15" neodymium woofer
HF 1" 3/4 mylar diaphragm
Directivity: H / V 50º to 100º x 55º Rotatable Horn
Frequency response:45 Hz - 19kHz (-10 dB HSA)
Sensitivity: Max SPL127 dB
Dimensions: (H/W/D) 692 x 471 x 410 mm
Weight:26.6 Kgs.
Finish:Birch plywood. Front grille with foam. Black paint
Optional accessories:Wall Stand. Back Cover. Flight-Case
