USB Player

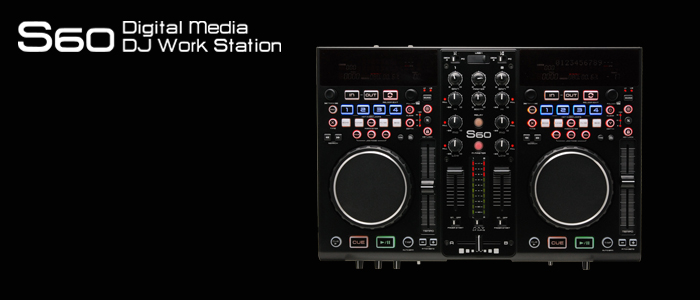

In this digital era, USB devices have become the most convenient way to store collections of music. S60 supports external USB mass storage devices. Connect an MP3 player, thumb drive, or hard drive for easy access of up to 255 folders, each of which can hold 999 files in MP3/WAV format
.
USB Player
- 2 USB sockets for external USB device support
- Two USB player share one external USB Device
- All control elements are MIDI compatible
- Automatic and manual tap beat counter
- Sleep function for reducing power consumption
- Optional rack-mount adaptor
Playback
- Instant start via 1 bit technology (8 fold)
- Instant playback from cue point
- Fader start to control playback on fader move
- Relay play function
- Single and Continuous play modes
- Cue Play function can back to cue and play instantly
Data search
- Track and folder searching system
- Advanced cueing with track searching by frame
- DATABASE BUILDER software for fast searching massive USB device
- Onboard file and folder browsing
- ID3 TAG support
Cue/Loop
- Auto cue function cues track to start of music
- Seamless loop function / reloop function
- 4 independent hot cues/loops banks with real-time adjustment
- Every track can save 4 hot cues and unlimited memos for USB drive
Pitch Control
- Adjustable pitch range ±6%, ±10%, ±16% and -100%
- High quality 100 mm long pitch fader
- Micro pitch with a resolution up to 0.02%
- Pitch bend control button
- Pitch bend up to - 100% and +16%
- Key Lock allow a track’s tempo to be changed without affecting the original key of the track
- Pitch ON/OFF button
Jog Wheel
- Touch sensitive jog wheel for scratching
- Multifunctional jog wheel for search, pitch bend and effects adjustment
- 3 modes for jog wheel: Normal CDJ, Scratch, Cue Scratch
- A Cue Scratch mode – touch wheel return-to-cue function
- Jog wheel control for pitch bending and frame searching
DSP Digital Effects
- 4 superb beat synchronized DSP digital effects
- Build-in Effects: ECHO, FLANGER, FILTER and Skid
- Effect parameters Time and Depth adjustable via Jog Wheel
Display
- Large extra bright dot-matrix VFD display for all functions
- Display playing address
- Display ELAPSED/REMAIN
- Displays text for ID3 tags and folder names for easy navigation
- Text display for navigating folders on MP3 CDs and USB flash drives
Mixer
- Input: Line x 2 (RCA), Phono x 2 (RCA), MIC x 2 (XLR/1/4 Inch Combo x 1,6.3mm x1)，USB x2
- Output: Balanced (XLR) x 1, Unbalanced (RCA) x1, Unbalanced Booth (RCA) x1, USB MIDI x 1
- 3 USB jacks, 2 for USB playback, one for PC MIDI connection
- Three-band EQ with Full output kill for each channel
- 2 MIC with level control, tone adjust and talkover
- Effect auto beat sync function
- Effect X & Y parameter adjustable
- Replaceable Crossfader with 3 curve switch
- Crossfader with fader start function
- Fader Start compatible with VOXOA CD/MP3 Player
- Headphone with level control and cue mixing
- Subwoofer Output with Frequency Adjust
- Booth out with level adjust
- Dual 10 LED monitor display (selectable PFL or Master output)
