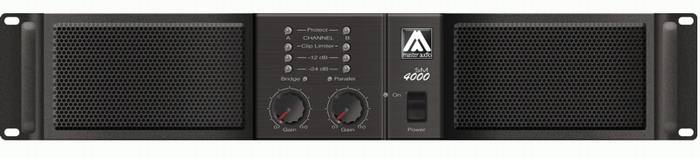

Power Amplifiers · SM SERIES -LIGHTP

SMPS - Class H - 2 x 2000 W / 4 Ohms - 13 Kgs.
Main Features - High Dynamic Power on musical program.
- Inrush current limiter, with gradual volume at switch-on.
- Undetectable clip-limiter circuit for maximum power level without distortion.
- Innovative Heatsink design.
- Signal / Noise ratio > 100 dB.
- Extensive protections: Short-Circuit, thermal, DC offset, R.F., Turn-on Turn-off muting.






User Manual
Brochure


MAIN TECHNICAL FEATURES

Voltage Gain: 38 dB
Input Sensitivity: 26 dB / 32 dB / 38 dB
Input impedance: 20k Ohm
Slew Rate: +/- 20 V/us
Output Power: (b.ch.d) (1kHz 1%THD) 3000 W @ 2 Ohm - 2000 W @ 4 Ohm
Continuous burst tone at 1200 W @ 8 Ohm
20ms (0dB) / 480ms (-20dB) in accordance with EIA RS-490 & IEC 60268-3 BRIDGE: 4100 W@ 8 Ohm - 6200 W@ 4 Ohm
AC Mains: Average current draw (1/3 power) AC 190-260 V - 50/60 Hz - 6 A (1/3 potencia)
Frequency response: 20 Hz - 20k Hz (0 / 0,5 dB)
Damping Factor : >300
Crosstalk: 65 dB
Signal/ Noise Ratio: 108 dB (A)
Dimensions: (H x W x D) 88 x 482 x 464 mm
Weight: 13 Kgs.
