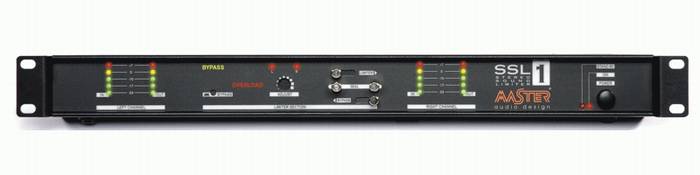

Stereo Sound Limiter
The SSL1 is a stereo limiter for all kinds of automatic sound control applications in any musical environment, from public venues to broadcasting, which may also be used as protection for speaker systems in general. It allows working to the legal sound limit without risk of untimely signal cuts while maintaining the minimum dynamic standards for a good musical response. Can be resealed once adjusted. User friendly and helps in keeping to authorized sound levels .








User manual
Brochure


MAIN TECHNICAL FEATURES

Input Impedance: 20k Ohm Balanced Inputs
Maximum Input Level: 8 V (+18dBV)
Output Impedance: 600 Ohm Balanced Outputs
Ouput Level at max attenuation: 25mV (-32dB)
Max compression level (Nominal input): 36 dB Input 1.5V (3.5dBV)
Input Overload Penalty: 2 sec. at max. attenuation when Input exceeds 3V (9 dBV)
High Pass Filter: 30Hz / 50Hz -18dB/oct (3rd order) switchable.
Frequency Response: 30Hz - 100kHz (+/-3dB) with HPF at 30Hz
Distortion THD: <0.01% (20Hz-20kHz)
Signal / Noise Ratio: <96dB at 0dB attenuation
Mains: 230V AC - 50/60 Hz
Dimensions (HxWxD) - 1 HE Rack 19" 44 x 482 x 190 mm
Weight: 3,5 Kgs.
