Speaker Section

Total Long-Term Power
1000W RMS

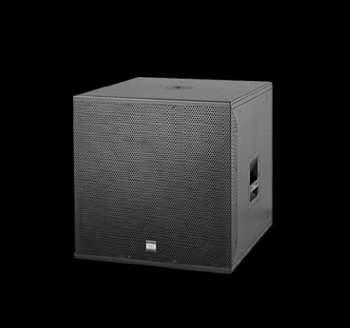

Subwoofer Unit
B&C 15 TBX 100
Frequency Response
35 Hz – 1500 Hz  ±3 dB
Operation Frequency Range
42 Hz – 120 Hz
Maximum Peak SPL
136 dB
Dynamic Range
>108 dB
Dimensions
432 X 504 X 540 mm (HXWXD)
Installation Facility
Floor mounting
Amplifier Section

Amplifier Input
Balanced XLR, 10KΩ
Input Sensitivity
0 dB for nominal output
Processing
24 bit 48kHz crossover + Class D amplifier
THD
1W-1000W, <0.02%
Output Power
1200W RMS
Working Voltage
110 / 230V AC
Power Socket
Standard IEC
