Type

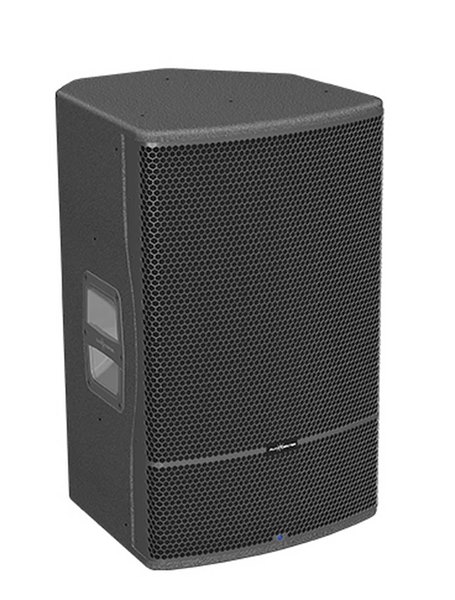

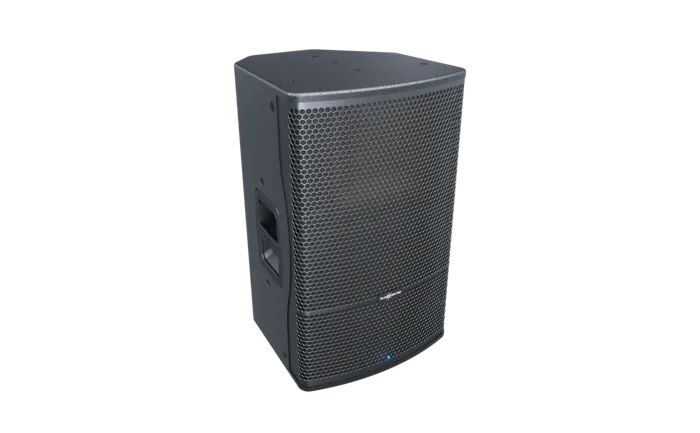

Active DSP-controlled full range loudspeaker

Frequency Response(-6dB anechoic chamber)

45Hz-20kHz

Maximum Calculated SPL/1M (Continuous/Peak)

128dB/134dB

LF Driver

Customized 12” driver, 3” voice coil

HF Driver

Customized driver, 1.75” voice coil and 1.0”exit

Horizontal Coverage Angle (Symmetrical)

60°

Vertical Coverage Angle (Symmetrical)

40°

AMPLIFIER

Amplifier Circuitry

Class D

Power(Peak)

2000W

Frequency Response(1W 8Ω 2ch)

20Hz-20kHz(±0.5dB)

Intermodulation Distortion

＜0.05%

Total Harmonic Distortion

＜0.05%

Protection

DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection

Cooling System

Cooling with fans, air convection

DSP

Processor

96kHz signal sampling frequency, 24bit precision

Presets

MAIN,  F/Monitor, W/SUB

Crossover

Controlled by DSP

Output/Input

Signal Input

2× female XLR, Mono jack 6.35, 1× RCA

Signal Output

2× male XLR

Power Input

3 pin plug

Working Voltage

100V~130V or 220V~240V(±10%,50/60Hz)

Cabinet

Cabinet Material

CNC made of excellent wood

Cabinet Color

Black is the default color. Contact Audiocenter for customization

Dimension(W×H×D)

374×608×378mm

Net Weight

25.0Kg
