פרוססור 2 כניסות 6 יציאות

Technical Parameter

Input: two - channel electronic balance
Impedance:>10 k ohms
Maximum input level: +12dBu

Output: six - channel electronic balance
Impedance: <80 ohms
Maximum output level: +18dBu

Frequency response: ± 0.5dB 20Hz-20KHz
S/N: >100 dBA
THD + N: <0.005%
Parametric equalizer: input 11 segments, output 7 segments
High pass (low cut) and low pass (high cut) filters
Frequency range: 20Hz ~ 20KHz, 1/36 octave
Filter slope: -6dB, -12dB, -18dB, -24dB, -36dB, -48dB.
Type selection: Butterworth, Linkwitz-Riley, Bessel
12dB Variable Q value.

Noise gate
Threshold value: -90~ -60dB
Startup time: 1~1000ms
Release time: 1~1000ms

Limiter
Threshold value: -14dB ~16dB, adjusting step distance is 0.2dB.
Startup time ranges from 5 to 200mS.
The release time was 0.1~3S

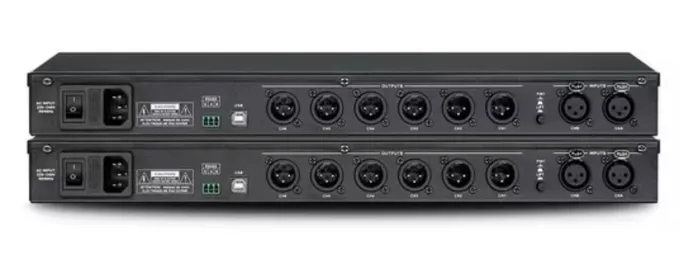

Connector
Input: 3-pin XLR female socket
Output: 3-pin XLR male socket
Communication port: RS485 USB
Power supply: AC220V~240V @ 50/60Hz
Power consumption: <30 watts
